Drinking water filling

IFA-PML802473

Send Inquiry
Product Description

Products can be handled

● Pure water, mineral water, spring water, etc.

Containers can be handled

● PET bottles with different volumes and shapes

Filling system

● Gravity filling

Capacity

●2000-20000BPH

Technical features

● It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor. It is easier and more simple to change over bottle size.

● Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts.

● High speed filling line adopts bottle gripper conveying technology. It is free to changer over bottle size and the working table inside the machine is more laconic.

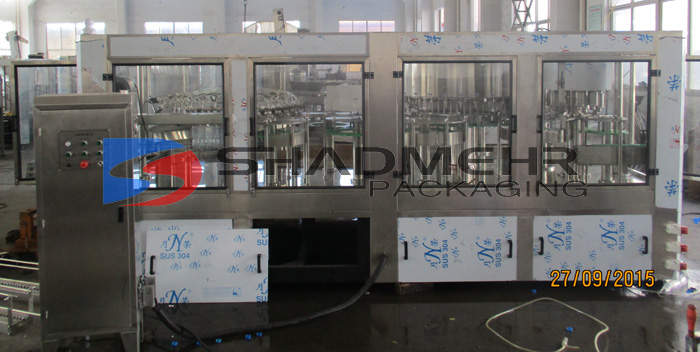

● By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

● Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.

● High speed and mass flow filling valve ensures the high filling speed and exact fluid level.

● Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.

● The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.

Main composition

● 3-in-1 monobloc is composed of rinser, filler, capper, machine base, covering windowns, main motor and transmission system, cap unscrambler and electric control system, etc.

● The overturning device of the rinser is mainly composed of water distributor, bottle gripper, upper rotary tray, guide trackl, protection cover, water spraying device and water collection tray.

● Filling device is mainly composed of filling barrel, filling valve, guide rail, elevating device, elevating device, etc.

● Capping device is composed of cap unscramblerr, cap falling chute and capper.

● The auxiliary (or optional) equipment include rinsing water recycle tank, bottle-in air conveyor and bottle-out conveyor. In addition, the manual bottle feeding table (or bottle unscrambler) and automatic cap elevator can be equipped according to customer requirement.
